Inch-Hardened Step Ejector Pins
  • Premium Hotwork Steel
  • Surface Hardened 65-70 Rc
  • Core Hardness 50-52 Rc


Specifications

d1
d3
L2
d2
k
+.0000/-.0003
+.000/-.001
+.010/-.010
+.000/-.010
+.000/-.002
1/32
1/8
1/8
1/8
3/64
1/8
5/32
1/8
1/16
1/8
3/16
1/8
5/64
1/8
13/64
1/8
3/32
1/8
7/32
1/8
7/64
1/8
15/64
1/8
1/8
1/8
1/4
1/8
9/64
1/8
1/4
1/8
5/32
1/8
9/32
5/32
11/64
1/8
11/32
3/16
3/16
1/8
3/8
3/16
13/64
1/8
3/8
3/16
7/32
1/8
13/32
3/16
15/64
1/8
13/32
3/16
1/4
1/8
7/16
1/4
17/64
1/8
7/16
1/4
9/32
1/8
7/16
1/4

d1
d3
L2
d2
k
+.0000/-.0003
+.000/-.001
+.010/-.010
+.000/-.010
+.000/-.002
19/64
1/8
1/2
1/4
5/16
1/8
1/2
1/4
21/64
1/8
9/16
1/4
11/32
1/8
9/16
1/4
23/64
1/8
5/8
1/4
3/8
1/8
5/8
1/4
13/32
1/8
11/16
1/4
7/16
1/8
11/16
1/4
15/32
1/8
3/4
1/4
1/2
1/8
3/4
1/4
9/16
1/8
13/16
1/4
5/8
1/8
7/8
1/4
11/16
1/8
15/16
1/4
3/4
1/8
1
1/4
7/8
1/8
1 1/8
1/4
1
1/8
1 1/4
1/4

^ return to top

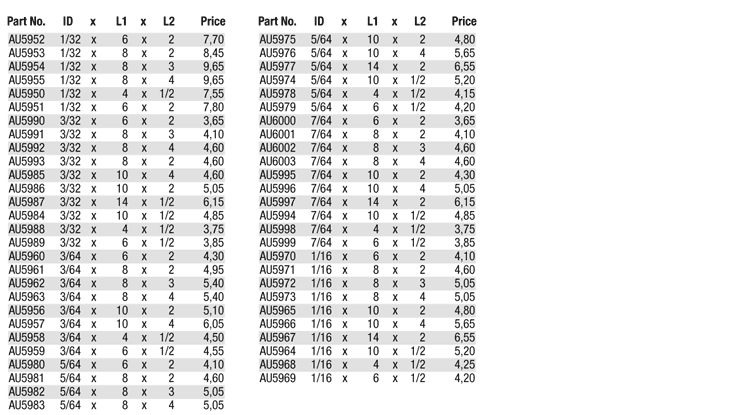

Standard Sizes & Pricing
